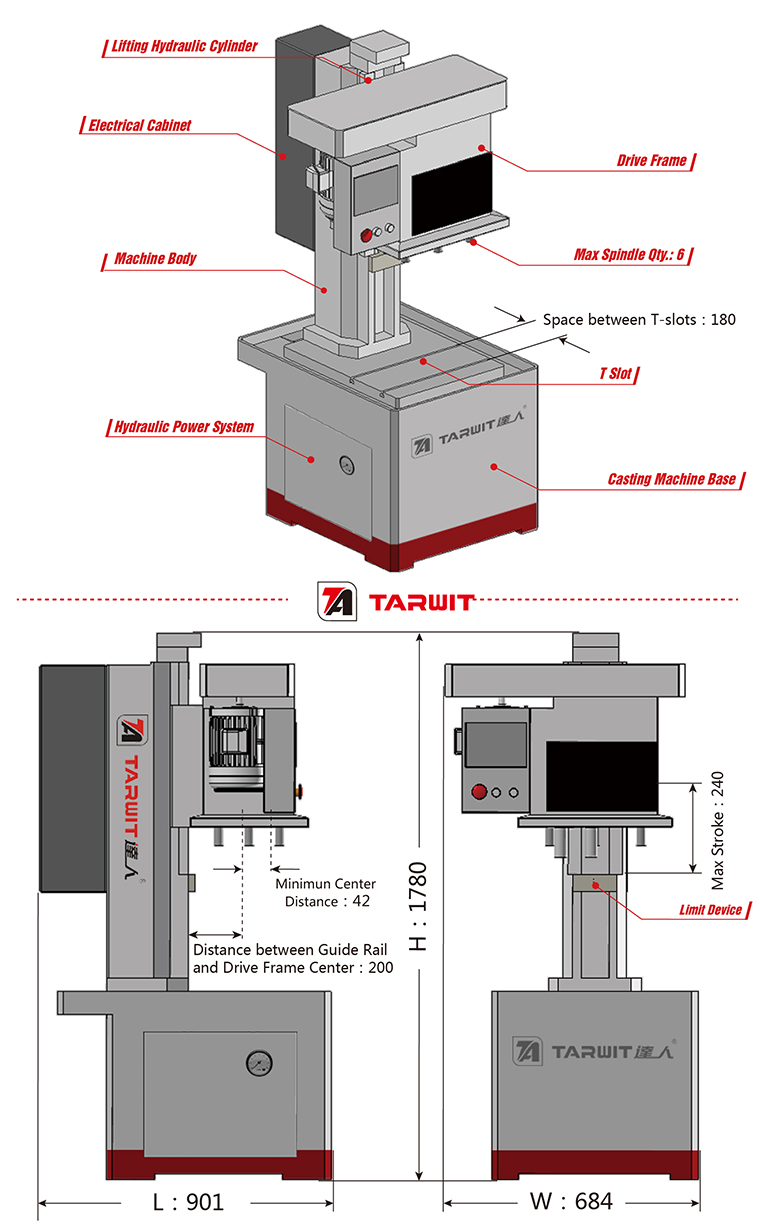

Machine features
SK5223 multiple spindle tapping machine is the latest machine model developed by Handa machinery company, characteristic of wide applications, high processing efficiency and simple operations. It filled the blank market in China. It is able to adjust the distance between the tapping holes flexibly, control the tapping depth precisely. You can set the Screw Pitch freely on the touch screen control panel to meet the requirements of different country's national standard.
Machine parameters
Technical Parameter Value
Tapping capacity M4~M16
Net weight 980kg
Min center distance 42mm
Max No. Of Spindle 6pcs
Drilling Area 170X290mm
Stroke 240
Work table size 350X500mm
Spindle Speed 0~800r/min
Main Motor 5.5kw
Size 901X684X1780mm
Speed Adjust Servo Motor
Drilling Capacity(hole size) M4-M16
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 0~800r/min
Lubrication Motor 0.09kw
