Machine features
SK5213 NC multiple spindle tapping machine is capable of tapping 12 holes at most simultaneously, characteristic of wide applications, high processing efficiency and simple operations. It filled the blank market in China. It is able to adjust the distance between the tapping holes flexibly, control the tapping depth precisely. You can set the Screw Pitch freely on the touch screen control panel to meet the requirements of different country 's national standard.
Machine parameters
Technical Parameter Value
Tapping capacity M4~M20
Net weight 2950kg
Min center distance 42
Max No. Of Spindle 12pcs
Drilling Area 290X500mm
Stroke 350
Work table size 450X750mm
Spindle Speed 0~500
Main Motor 5.5kw
Size 940X1108X2400mm
Speed Adjust Servo Motor
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 250
Maximum Spindle Travel 350mm
Spindle Rotary Speed 0~500r/min
Lubrication Motor 0.09kw

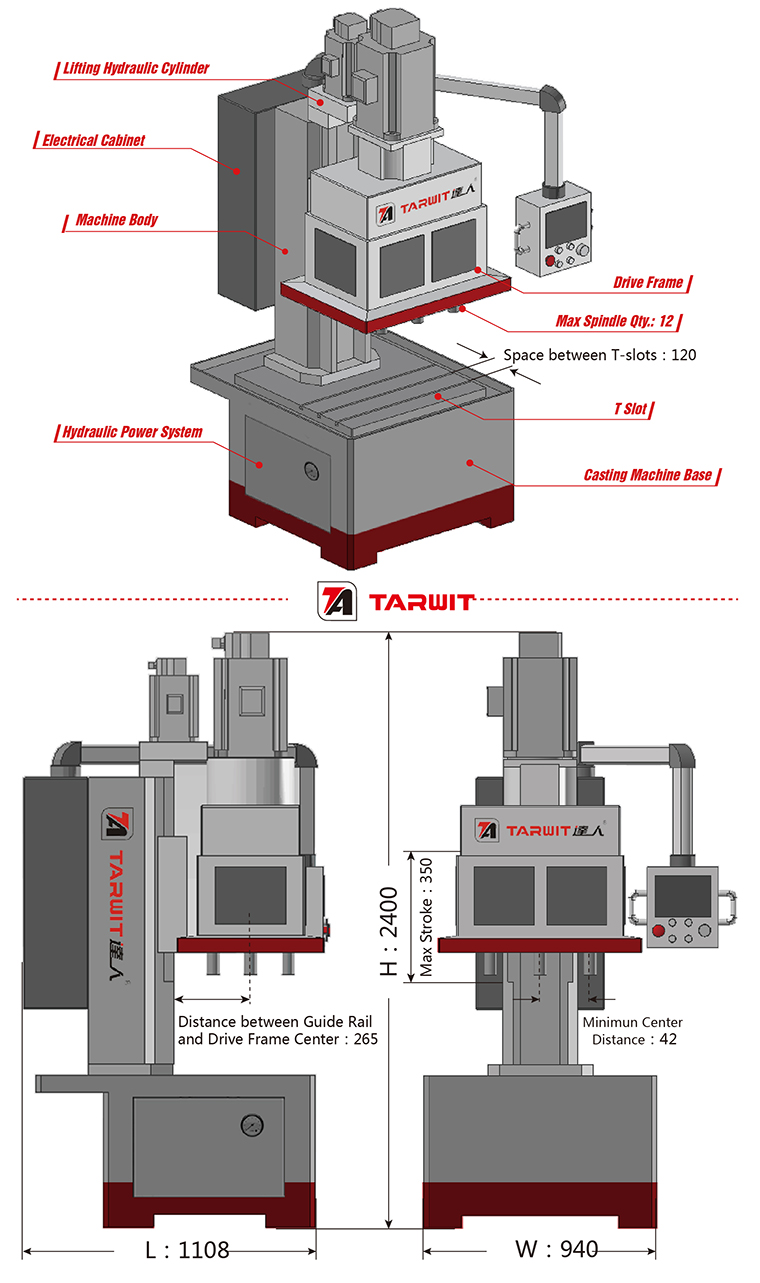

Details

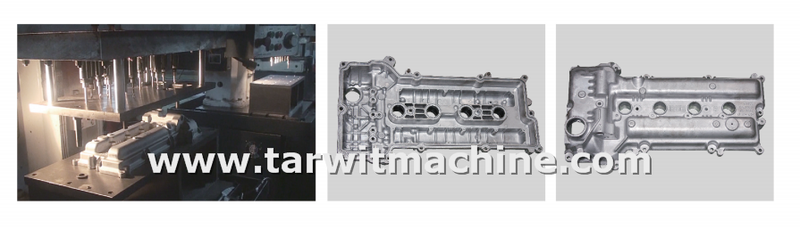

  Processing Example

Machine ModelSK5213X24YS               Workpiece NameAutomobile Engine Cover

Diameter of Holes:M6        mm                   Number of Holes8                      Processing Time10s

SK5223X12 NC vertical multiple spindle tapping machine photo (3).png
