Machine features
ZK5213 series linear type machines, are especially useful for drilling the parts with holes that are linearly distributed, features high rigidity and high efficiency.

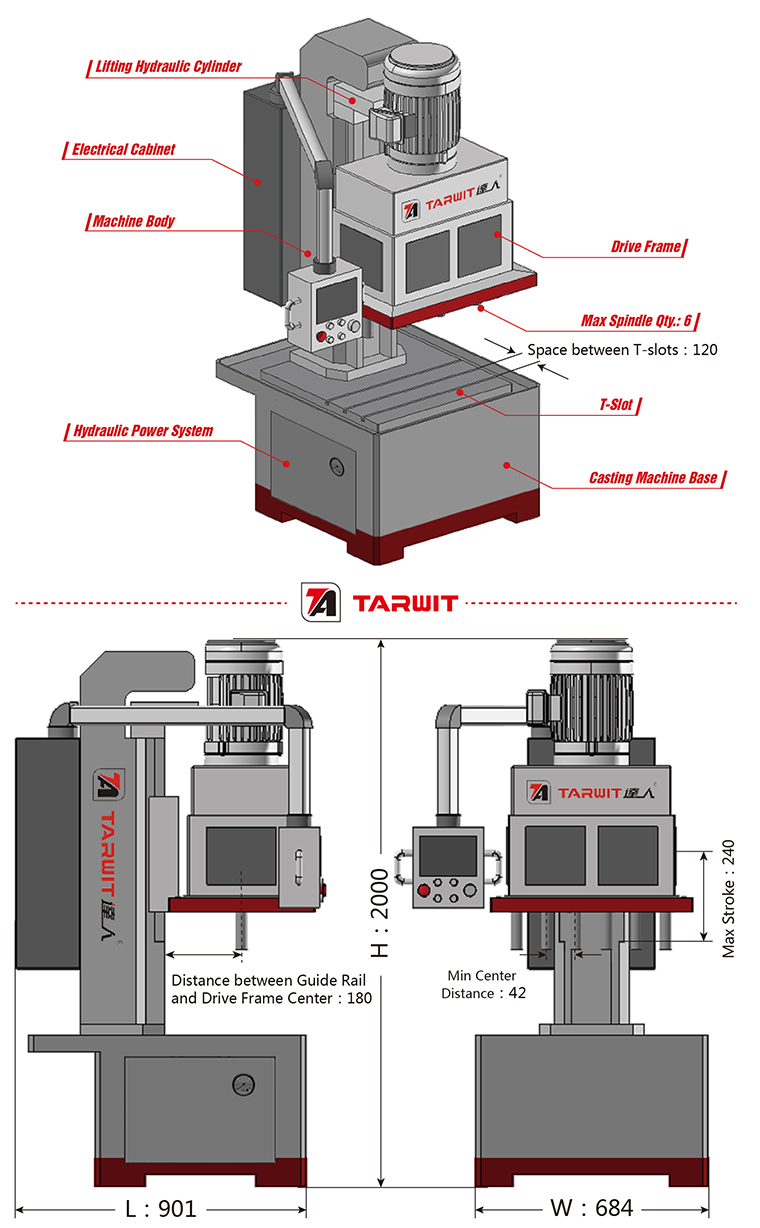

Machine parameters
Technical Parameter Value
Net weight 980kg
Min center distance 42mm
Max No. Of Spindle 4pcs
Drilling Capacity φ8~φ23mm
Drilling Area 50X500mm
Stroke 240
Work table size 350X500mm
Spindle Speed 300~600
Main Motor 4kw
Size 901X684X2000mm
Speed Adjust frequency converter
Drilling Capacity(hole size) φ8~φ23
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 300~600r/min
Lubrication Motor 0.09kw
Details




 Processing Example

Machine Model:ZK5223X4/4Y-Z           Workpiece Name:Hollow aluminum tube    Depth of Holes:30mm

Diameter of Holes:17mm                   Number of Holes:4                     Processing Time:7s

ZK5223X4 linear type multiple spindle driling machine photo (1).png
