ZB6223X12
ZB6223X12
  • ZB6223X12
  • ZB6223X12
  • ZB6223X12

Views:1180Release date:2016-04-12

Previous:ZB6223X6Next:It's the last one.

Machine parameters
Technical Parameter Value
Net weight 1500kg
Min center distance 42mm
Max No. Of Spindle 12pcs
Stroke 350
Work table size 450*750
Spindle Speed 240~560
Main Motor 7.5
Size 2500*1000*1300
Drilling Capacity(hole size) φ14~φ23
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 300mm
Lubrication Motor 0.09kw

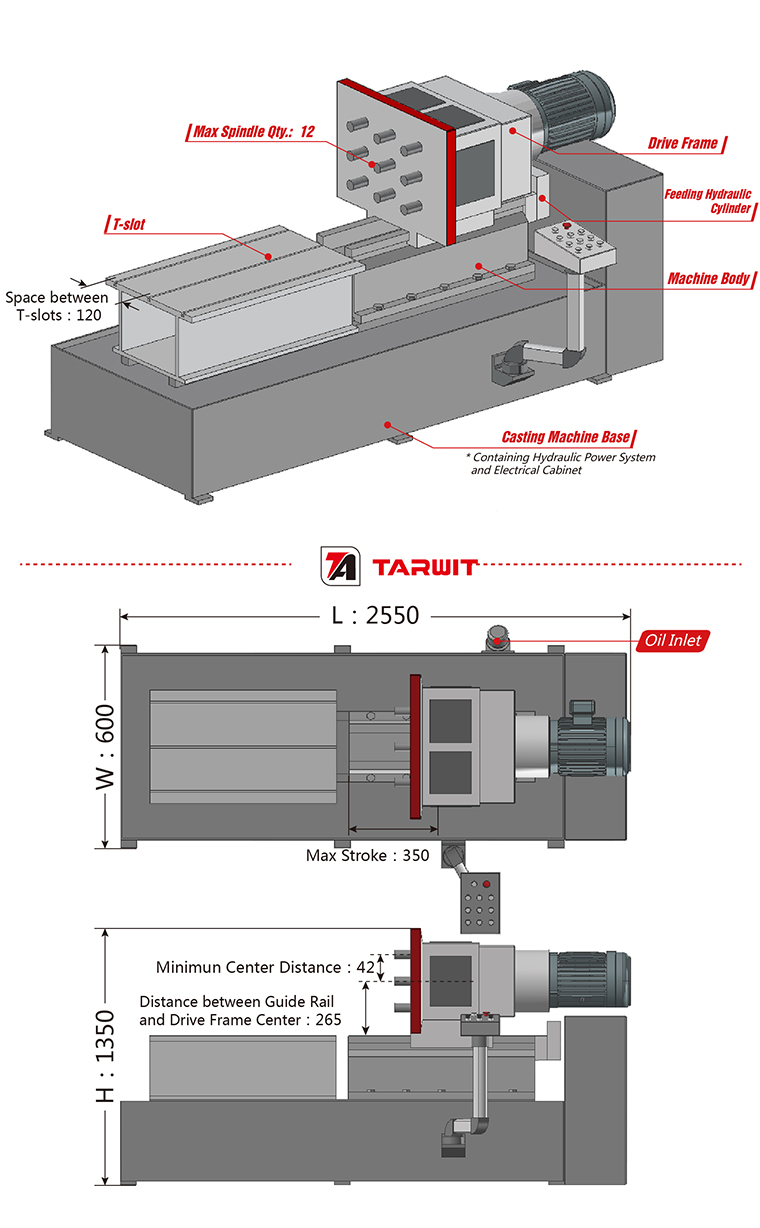

Details

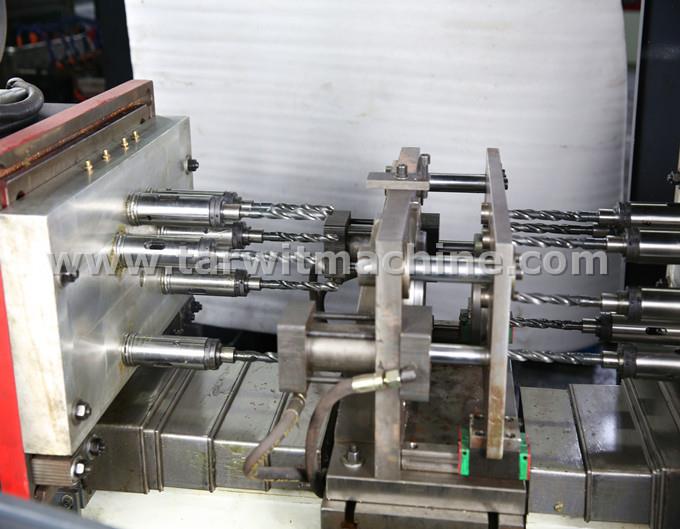

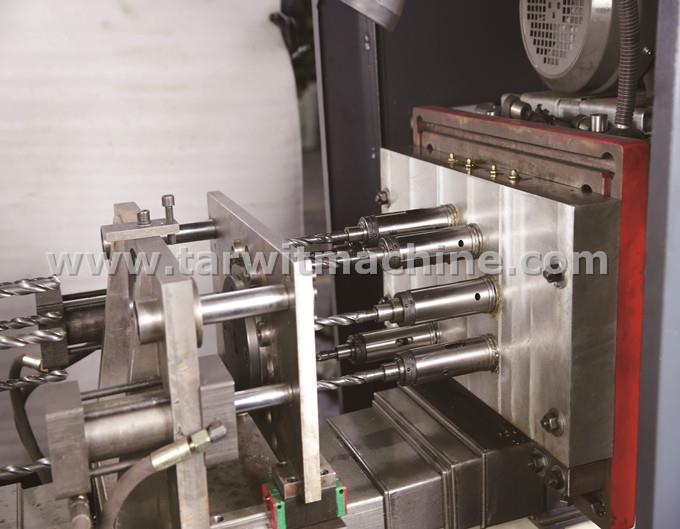

 Processing Example

Tag
Multi Spindle Drilling MachineHorizontal Drilling Machine
