ZB6213X24
ZB6213X24
  • ZB6213X24
  • ZB6213X24
  • ZB6213X24
  • ZB6213X24

Views:1737Release date:2016-04-12

Previous:ZB6223X6Next:It's the last one.

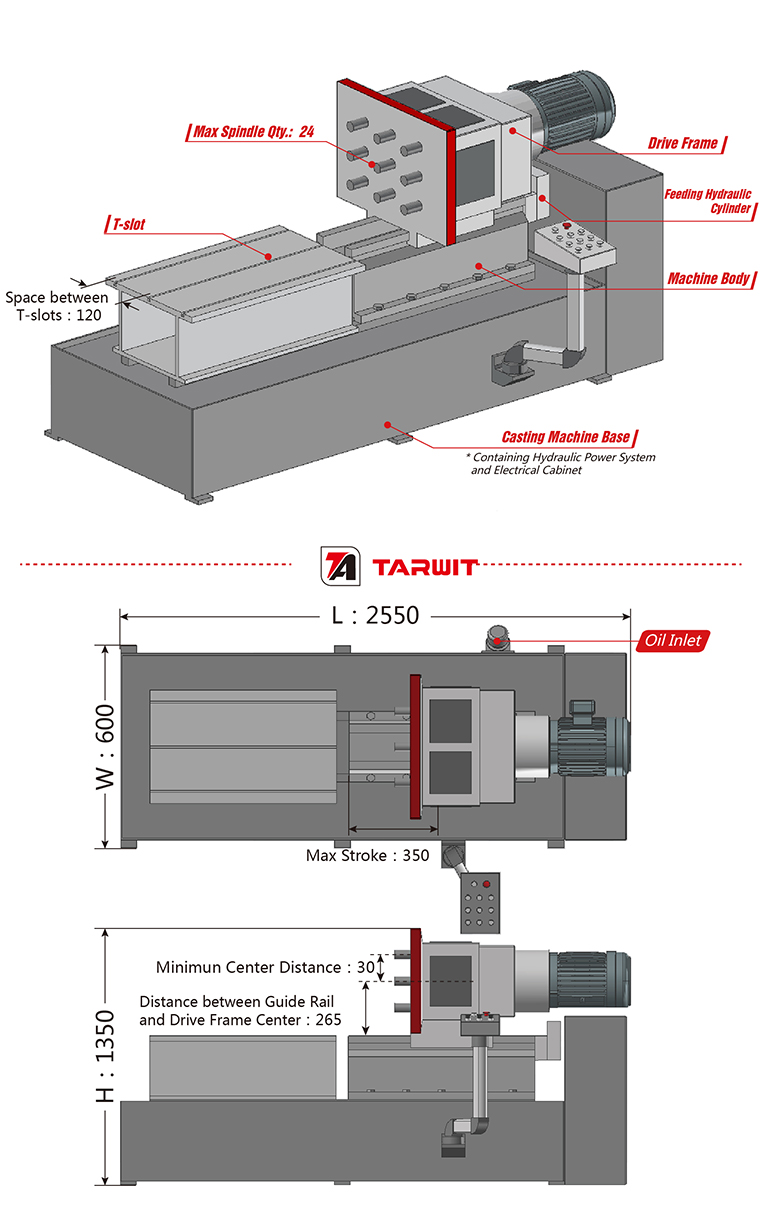

Machine parameters
Technical Parameter Value
Net weight 1500kg
Min center distance 24mm
Max No. Of Spindle 24pcs
Stroke 350
Spindle Speed 550~1350
Main Motor 7.5kw-4P
Size 2550*600*1350
Drilling Capacity(hole size) φ3~φ13
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Lubrication Motor 0.09kw
Details




 Processing Example

Tag
Multi Spindle Drilling MachineHorizongtal Drilling Machine
