Machine features
QK5213 numerical controlled vertical multiple spindle drilling and tapping machine is the latest machine model developed by Handa machinery company,use the new model servo motor,to get higher spindle speed,plus moveable worktable.Ensure high precision hole position and threads quality .You can set the thread Pitch on the touch screen control panel to meet the requirements of different standard.High efficient,easy to operate.
Machine parameters
Technical Parameter Value
Work sliding table travel 300mm
Net weight 980kg
Min center distance 30mm
Max No. Of Spindle Drilling:6pcs Tapping:6pcs
Drilling Area 180X300mm
Work table size 210*300
Main Motor 3.7kw
Size 900*685*1780
Drilling Capacity(hole size) Drilling:φ3~φ12 Tapping: M3~M10
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 250mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 0~1300r/min
Lubrication Motor 0.09kw

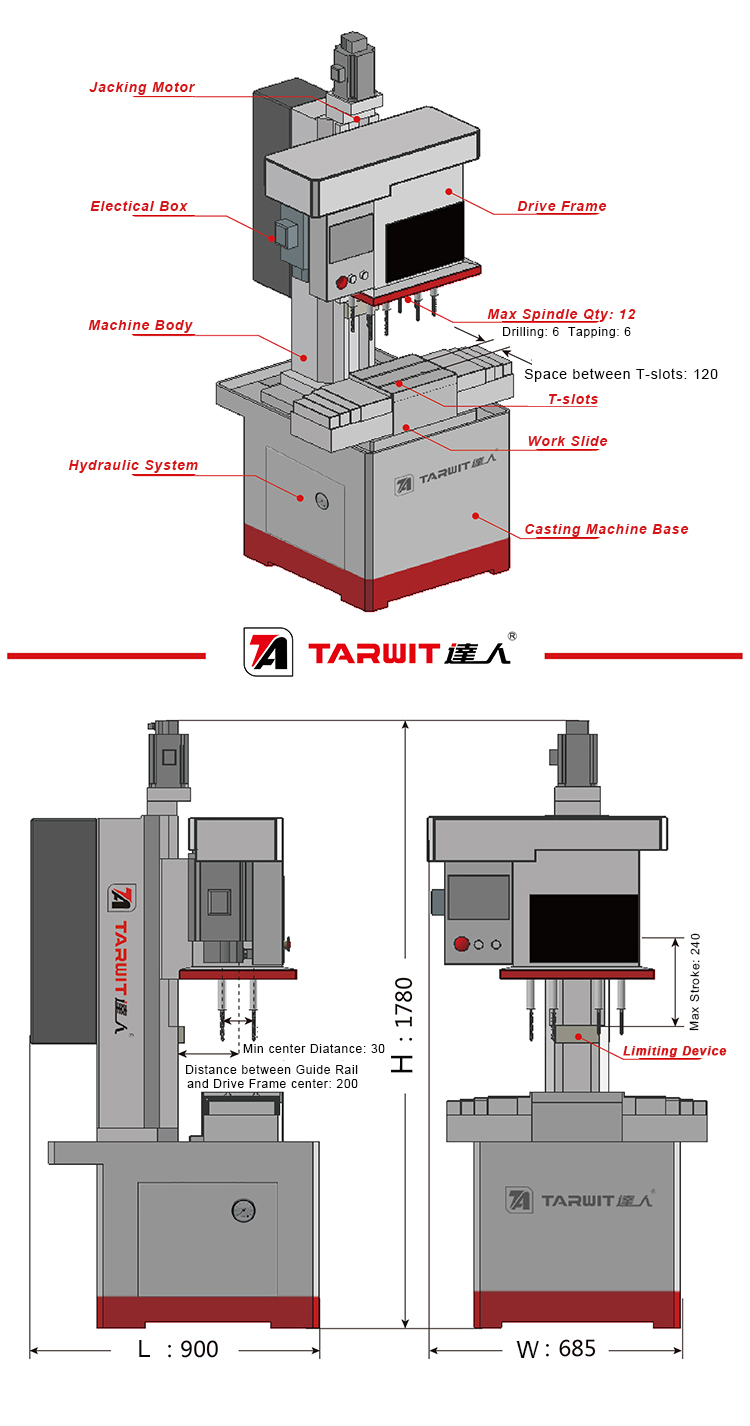

QK5213X12 multi spindle drilling and tapping machine.jpg

 Processing Example

Machine ModelQK5213X12/12Y          Workpiece Name:Support Wheel         Depth of holes:12mm

Diameter of Holes:φ6.5mm    M8               Number of Holes12                      Processing Time30s

QK5213X12 NC vertical multiple spindle drilling&tapping machine photo (4).png
