Machine features

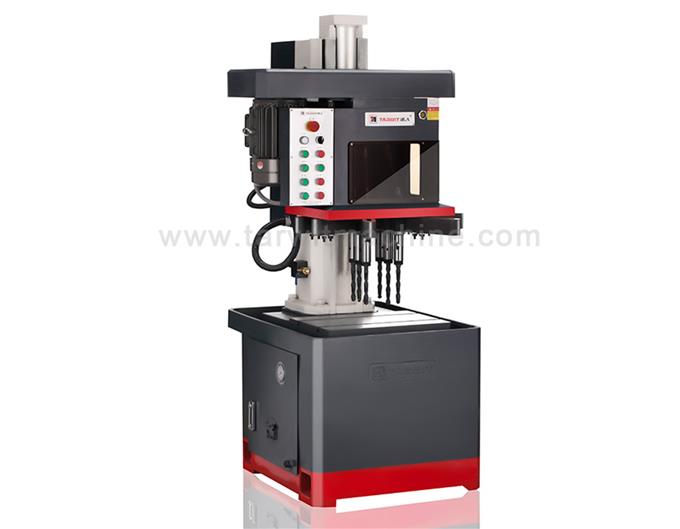

TARWIT brand vertical multiple drilling machine is our second generation vertical machine, fully absorbing the advantages of the multiple drilling machines existed world widely. With adjustable hole distances, it’s suitable for all kinds of work piece, especially good at drilling cast iron, non ferrous metals and the ferrous metals with the hardness less than HRC35. It will be a great help to you when large quantity batch production is needed.

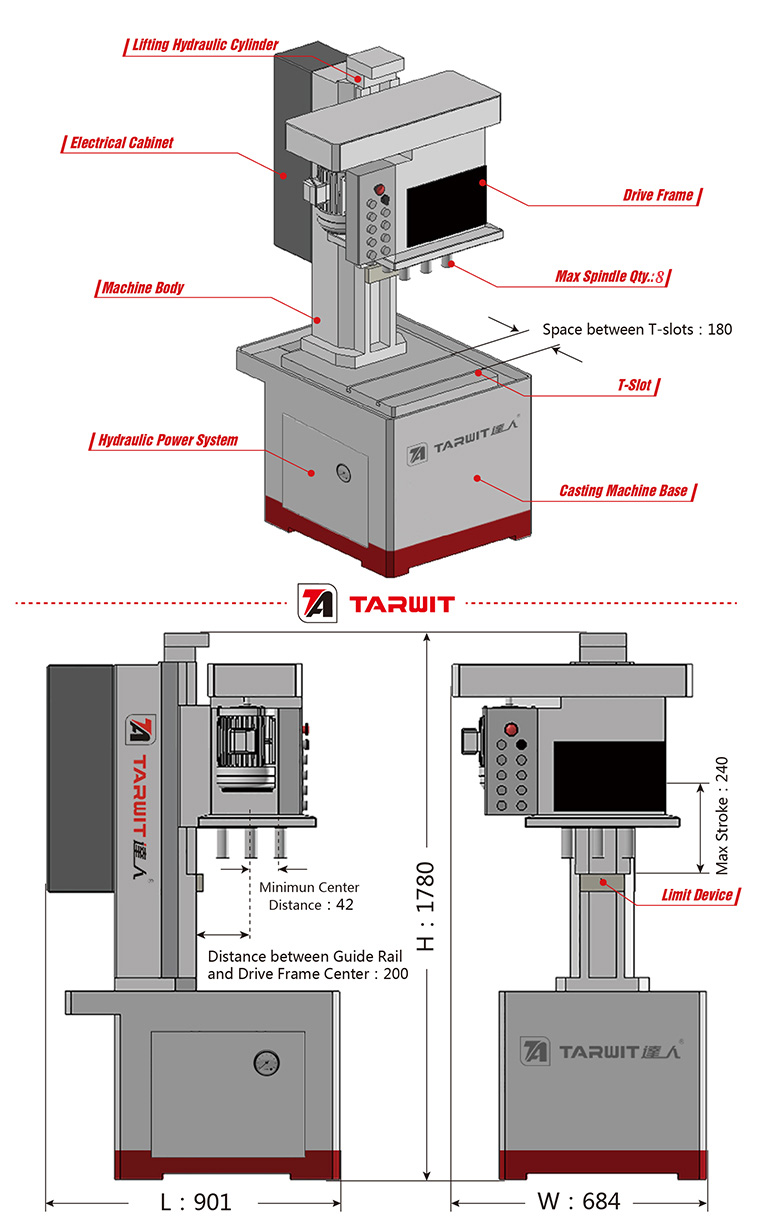

Machine parameters
Technical Parameter Value
Net weight 980kg
Min center distance 42mm
Drilling Capacity φ14~φ23mm
Drilling Area 300X300mm
Work table size 350X500mm
Main Motor 5.5kw
Size 901x684x1780mm
Speed Adjust Change V-belt
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 224/338/549r/min
Lubrication Motor 0.09kw
