QK6413X12-Z
QK6413X12-Z
  • QK6413X12-Z
  • QK6413X12-Z
  • QK6413X12-Z

Views:1358Release date:2018-03-07

Previous:ZK7423X12Next:It's the last one.

Machine features
TARWIT QK6413 series NC multi spindle drilling machine,use Omron PLC,servo motor controls the feed precision,easy to operate.It's a multi function machine,includes drilling a starting point,drilling and reaming.Can make precision holes,suitable for mass production,improve the production capacity.
Machine parameters
Technical Parameter Value
Net weight 2500kg
Min center distance 30mm
Max No. Of Spindle Lead Hole:4pcs Drilling:4pcs Reaming:2pcs
Drilling Capacity Drilling:φ3~φ13mm Reaming:φ3~φ13mm
Work table size 350X500mm
Main Motor 3.7X2kw
Size 2400X1760X1423
Speed Adjust Change V-belt and Servo Motor
Hydraulic pump motor 0.75kw
Maximum Spindle Travel 240mm
Spindle Rotary Speed 0~3000r/min
Lubrication Motor 0.09kw
Details

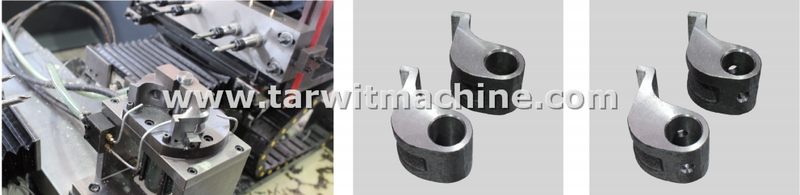

 Processing Example


Machine ModelQK6413X12         Workpiece Name:Auto Reverse Gear Block         Depth of holes:12mm

Diameter of Holes:8mm               Number of Holes4*2                                            Processing Time30s

QK6413Linear type numerical controlled Multiple Spindle Driling Machine photo3.png
