Machine features
TARWIT QK6413 series NC multi spindle drilling machine,use Omron PLC,servo motor controls the feed precision,easy to operate.It's a multi function machine,includes drilling a starting point,drilling and reaming.Can make precision holes,suitable for mass production,improve the production capacity.
Machine parameters
Technical Parameter Value
Net weight 2200kg
Max No. Of Spindle Lead Hole:2pcs Drilling:2pcs Spot-facing:2pcs Tapping:2pcs
Drilling Capacity Drilling:φ8~φ20mm Tapping:M3~M20mm
Drilling Area 50X500mm
Work table size 350X500mm
Main Motor 3.7X2kw
Size 2400X1100X850
Speed Adjust Servo Motor
Hydraulic pump motor 0.75kw
Maximum Spindle Travel 240mm
Spindle Rotary Speed 200~1400r/min
Lubrication Motor 0.09kw
Details

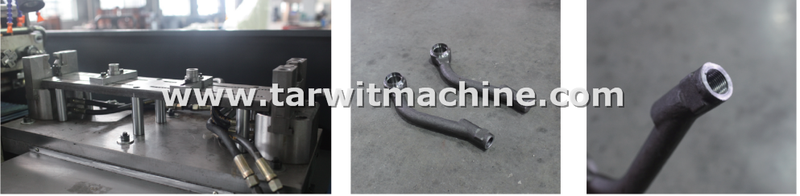

 Processing Example


Machine ModelQK6423X8                         Workpiece Name:Auto Parts                              Depth of holes:50mm

Diameter of Holes:φ12.5mm   M14               Number of Holes1*2                                          Processing Time70s

QK6423 Linear type numerical controlled Multiple Spindle Driling Machine photo3.png
