ZK6423X24
ZK6423X24
  • ZK6423X24

Views:1357Release date:2018-03-10

Previous:ZK6413X48Next:It's the last one.

Machine features
ZK6223 series horizontal multiple spindle drilling machine are capable of processing two surface at the same time, characteristic of higher efficiency, suitable for the parts with lots of holes, but with little distances between holes, and the parts of which two surface are needed to be drilled.
Machine parameters
Technical Parameter Value
Net weight 2500kg
Min center distance 290X500mm
Max No. Of Spindle 24pcs
Drilling Capacity φ14~φ23mm
Work table size 450X750mm
Main Motor 7.5X2kw
Size 2940X1000X1300mm
Speed Adjust frequency converter
Hydraulic pump motor 4.5kw
Min Distance From Spindle Head 240mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 180~800r/min
Lubrication Motor 0.09kw
Details

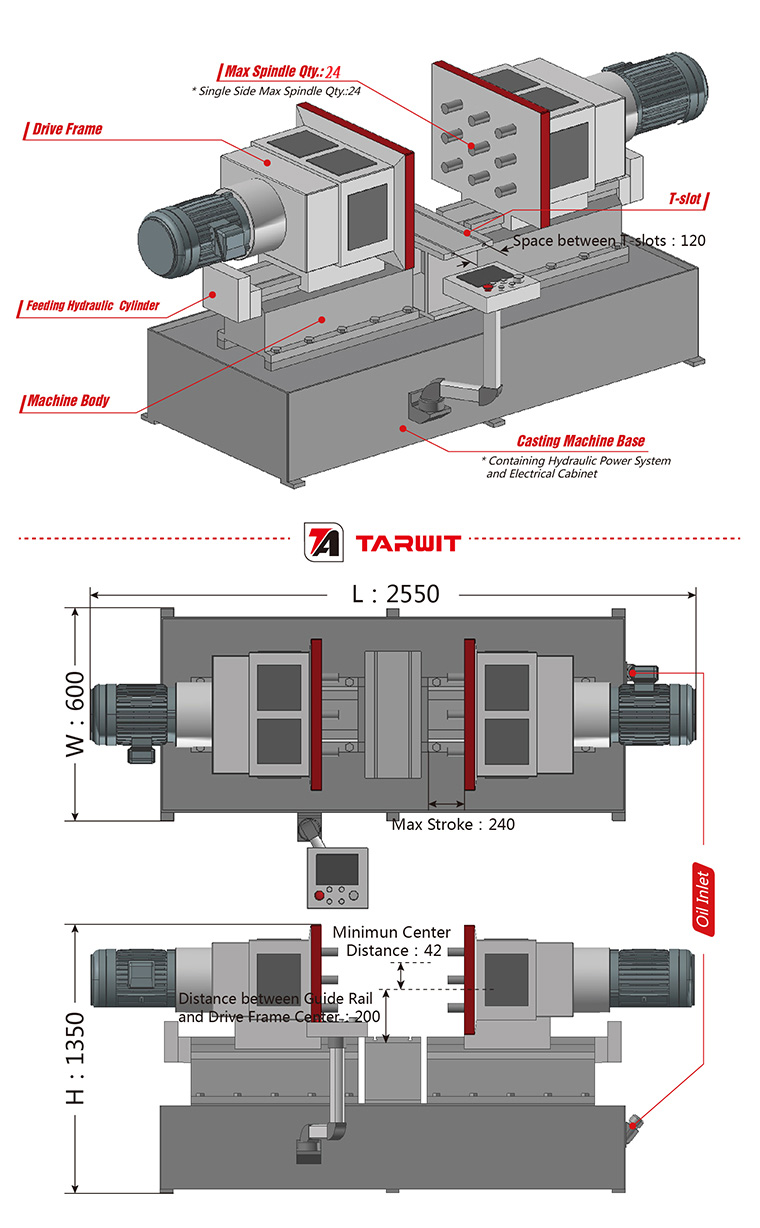

ZK6423x24 NC horizontal multi spindle drilling machine .jpg
