Multi Spindle Drilling Machine or Tapping machine made in HANDA
       Model:ZB5207
         Model:ZB5213/ZB5223
Type:VerticalType:Vertical
Drilling capacity:Φ3-Φ7Drilling capacity:Φ3-Φ13/Φ14-Φ23
Max Spindle:12 pcsMax Spindle:12/6 pcs
Drilling Area:300x300mmDrilling Area:180x300/180x290mm
Min. Center Distance:24mmMin. Center Distance:30/42mm






   Model:ZB6213/ZB6223     Model:ZK8223
Type:HorizontalType:Vertical
Drilling capacity:Φ3-Φ13/Φ14-Φ23Drilling capacity:Φ14-Φ23
Max Spindle:12/6 pcsMax Spindle:customized
Drilling Area:180x300/170x290mmDrilling Area:customized
Min. Center Distance:30/42mmMin. Center Distance:60mm






      Model:ZK5213/ZK5223     Model:ZK5232
Type:VerticalType:Vertical
Drilling capacity:Φ3-Φ13/Φ14-Φ23Drilling capacity:Φ23-Φ32
Max Spindle:24/12 pcsMax Spindle:12 pcs
Drilling Area:300x520/290x500mmDrilling Area:600X650mm
Min. Center Distance:30/45mmMin. Center Distance:65mm






 Model:ZK6232         Model:SK5213
Type:HorizontalType:Vertical
Drilling capacity:Φ14-Φ23Drilling capacity:M3-M16
Max Spindle:12 pcsMax Spindle:24 pcs
Drilling Area:400x400mmDrilling Area:400x500
Min. Center Distance:65mmMin. Center Distance:30mm






         Model:QK5213/QK5223  Model:QK61213
Type:VerticalType:Vertical
Drilling capacity:Φ3-Φ13/Φ3-Φ23Drilling capacity:Φ3-Φ16
Tapping capacity:M3-M12Tapping capacity:M5-M16
Max Spindle:12/8pcsMax Spindle30/30(tapping) pcs
Drilling Area:150x180/140x170mmDrilling Area:170X290mm
Min. Center Distance:30/45mmMin. Center Distance:30mm






  Model:ZB6423
Type:Horizontal
Drilling capacity:Φ3-Φ23
Max Spindlecustomized
Drilling Area:customized
Min. Center Distance:100/150mm



  Processing Example

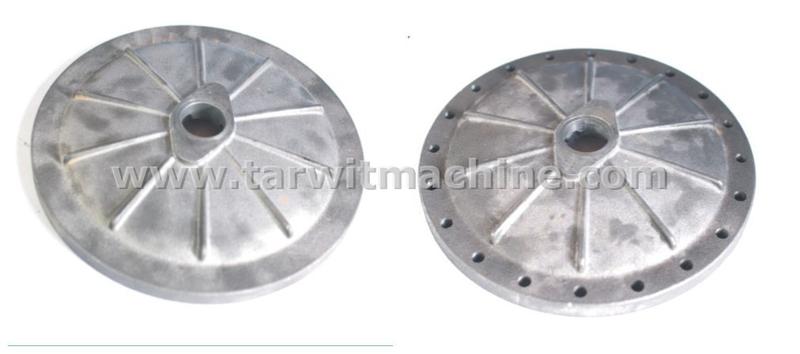

Machine Model:ZK5223*16           Workpiece Name:Specification Flange          Depth of Holes:30mm

Diameter of Holes:18mm               Number of Holes:12                                           Processing Time:70s
