SK5223x12(400*400)
SK5223x12(400*400)
  • SK5223x12(400*400)
  • SK5223x12(400*400)
  • SK5223x12(400*400)
  • SK5223x12(400*400)

Views:995Release date:2018-04-09

Previous:SK5213X32(500*500)Next:It's the last one.

Machine parameters
Technical Parameter Value
Tapping capacity M4~M20
Tapping area 400x400
Max. tapping diameter 90mm
Net weight 2950kg
Max No. Of Spindle 12
Work table size 450X750mm
Spindle Speed 0-300rpm
Main Motor 18.5kw
Size 940X1108X2400mm
Z axis Travel(Stroke) 350mm
Details

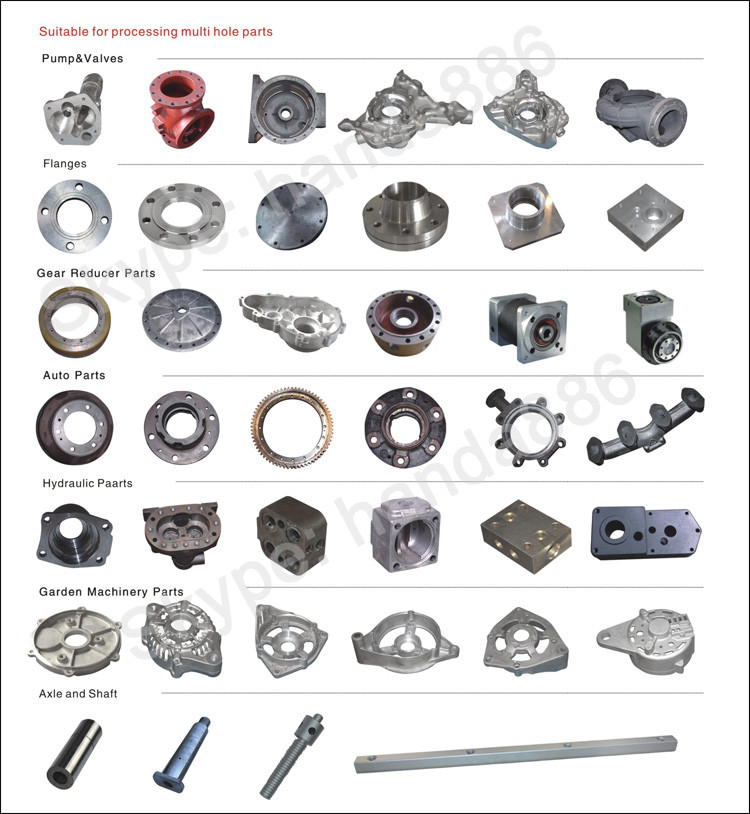

◆ Workpiece Sample show



 Here are part of our workpiece, for more information, please contact us.

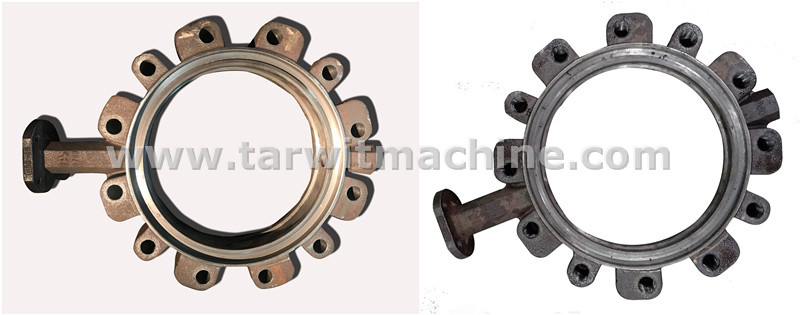

 ◆ Processing Example

Machine Model:SK5223*12          Workpiece Name:Valve                  Depth of Holes:40mm

Diameter of Holes:M20                   Number of Holes:12                      Processing Time:50s

SK5223X12 Multi Spindle Tapping Machine photo.jpg
