ZK5223X12(400*400)
ZK5223X12(400*400)
  • ZK5223X12(400*400)
  • ZK5223X12(400*400)
  • ZK5223X12(400*400)
  • ZK5223X12(400*400)

Views:1156Release date:2018-07-19

Previous:ZK5255X6Next:It's the last one.

Machine parameters
Technical Parameter Value
Model ZK5223*12(400*400)
Net weight 2950kg
Max No. Of Spindle 12pcs
Drilling Capacity φ14~φ23mm
Drilling Area 400X400mm
Work table size 700X750mm
Main Motor 11-6P
Hydraulic Motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 150~500r/min
Lubrication Motor 0.09kw
Details

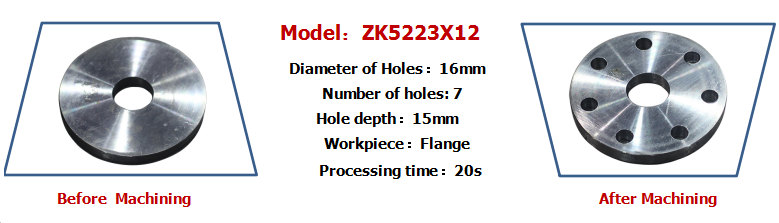

Multi Spindle Drilling Machine(1).png

Tag
Multi Spindle Drilling MachineVertical Drilling Machine
