ZX4030 CNC high speed drilling machine
ZX4030 CNC high speed drilling machine
  • ZX4030 CNC high speed drilling machine
  • ZX4030 CNC high speed drilling machine
  • ZX4030 CNC high speed drilling machine
  • ZX4030 CNC high speed drilling machine

Views:1898Release date:2016-03-15

Previous:It's the first one.Next:It's the last one.

Machine features
ZX4030 NC vertical high speed driling machine using high speed spindle,the center water cooling,the number of the flexible control of CNC system.Shorten the production preparetion preriod,has greatly increased the production efficiency.Is mainly used in:hole,small batch,replace frequent line of products.
Machine parameters
Technical Parameter Value
Weight 3000
The biggest hole diameter φ30
Max. tapping diameter M16(ISO-P)/M18(Casting)
Max. feeding force 800 kgf
Spindle rotary speed range 65 N.m
Repeat positioning accuracy 0.02/300 mm
Work table bearing 200kg
Main motor cooling pump 1.1 kw
Control system CNC
Positioning accuracy 0.02/300 mm
Model ZX4030
Work table size 380X600
Main Motor 5.5kw
Size 2000X1600X2400
Speed Adjust Servo Motor
Drilling Capacity(hole size) Drilling:φ30 Tapping: M16/M18
Maximum Spindle Travel 400(X)/300(Y)/350(Z)
Spindle Rotary Speed 0~4000 r/min
Details

Why TARWIT:

1. High quality

2. High performance

3. One-button operation

4. High precision

5. Feed stability

6. Low maintenance cost

7. Professional manufacturer

NC Multi-spindle Drilling and Tapping Machine7.jpg

Quality assurance

Use high-end components

The best design which is designed by experienced engineers

Well-trained workforce

All machines run 72 hrs in continuous to get optimum conditions before shipment

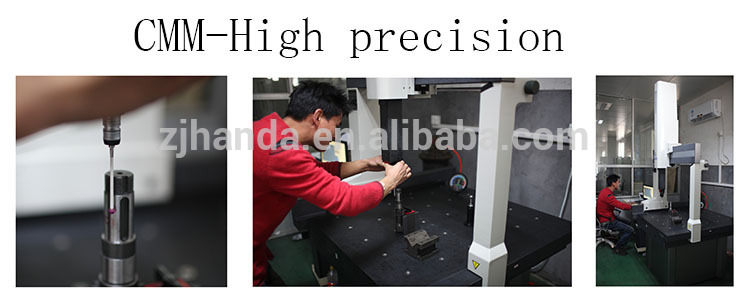

High precision measurement apparatus

Good quality control and assurance system

NC Multi-spindle Drilling and Tapping Machine8.jpg

Well-known suppliers' components

NC Multi-spindle Drilling and Tapping Machine9.jpg

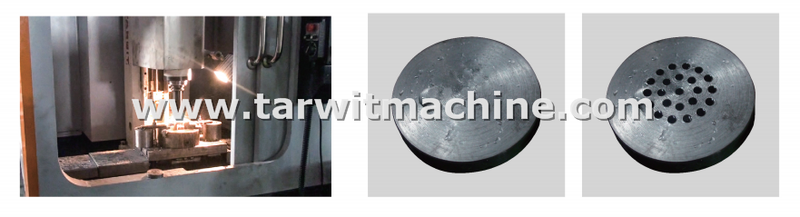

 Processing Example

Machine ModelZX4030          Workpiece Name:Plate                 Depth of holes:15mm

Diameter of Holes:φ6mm         Number of Holes23                    Processing Time65s

ZX4030 NC vertical high-speed driling machine photo 3.png
