Machine features
ZK5213 series machine is independent developed by Zhejiang Handa company,characteristic of high rigidity and superior performance.Numerical controlled artifical intelligence systems are applied in these machine,which enable them to drill 24 holes at most simultaneously,are especially useful for the parts with lots of holes,parts with large holes and parts with deep holes.
Machine parameters
Technical Parameter Value
Net weight 2950kg
Min center distance 30mm
Max No. Of Spindle 24pcs
Drilling Capacity Ф3-φ13mm
Drilling Area 300X520mm
Work table size 450x750mm
Spindle Speed 250-1200rpm
Main Motor 7.5-4P
Size 940x1108x2400mm
Z axis Travel(Stroke) 350mm
Speed Adjust Frequency converter
Hydraulic pump motor 0.75kw
Spindle Rotary Speed 550~1350r/min
Lubrication Motor 0.09kw

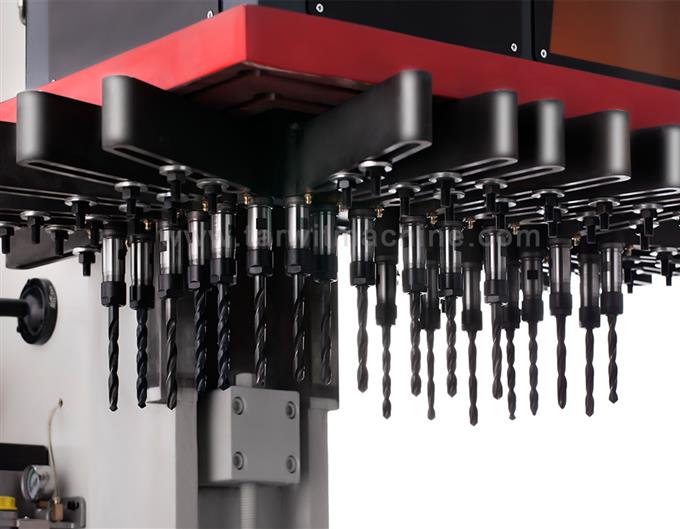

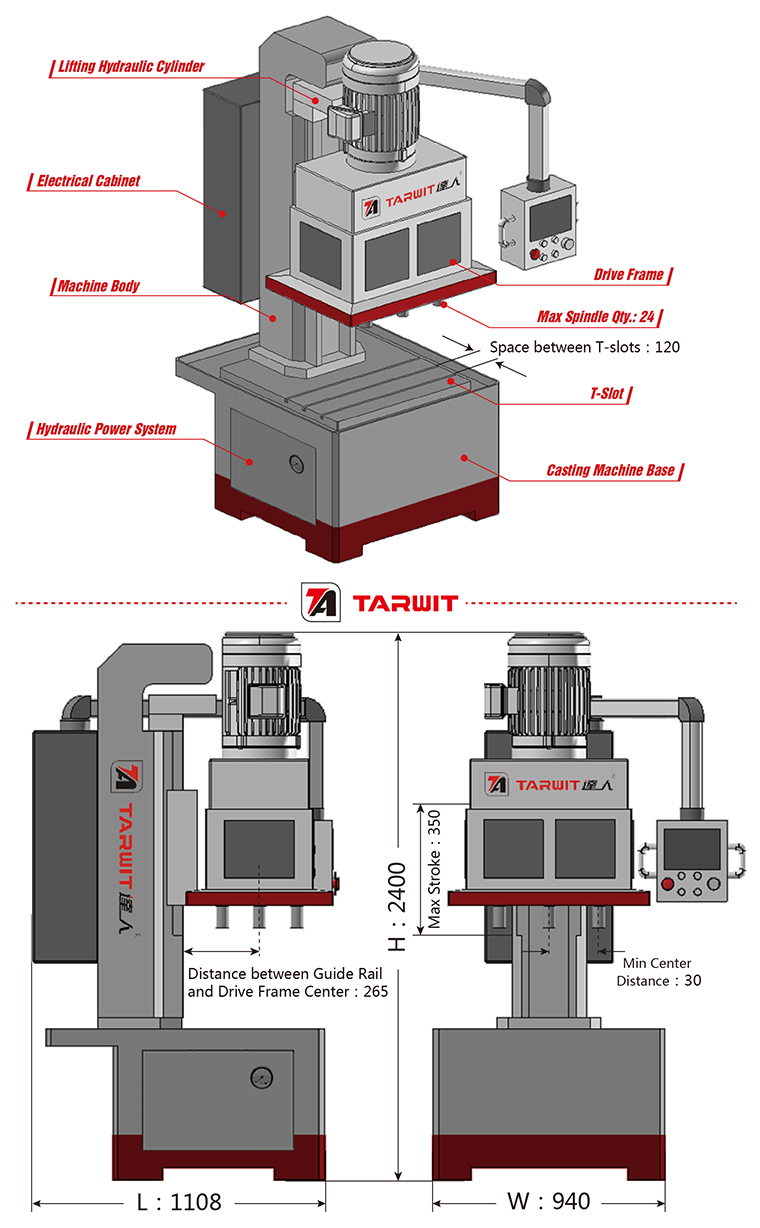

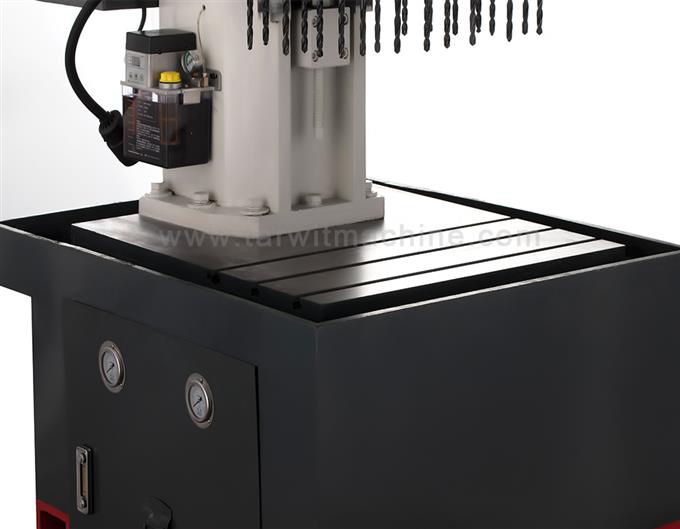

Details




ZK5213x24 7.jpg


  Processing Example

Machine ModelZK5213*24/20Y           Workpiece NameCasting Cover

Diameter of Holes11mm                   Number of Holes20                      Processing Time29s

ZK5213X24 numerical controlled vertical multiple spindle driling machine photo .png
