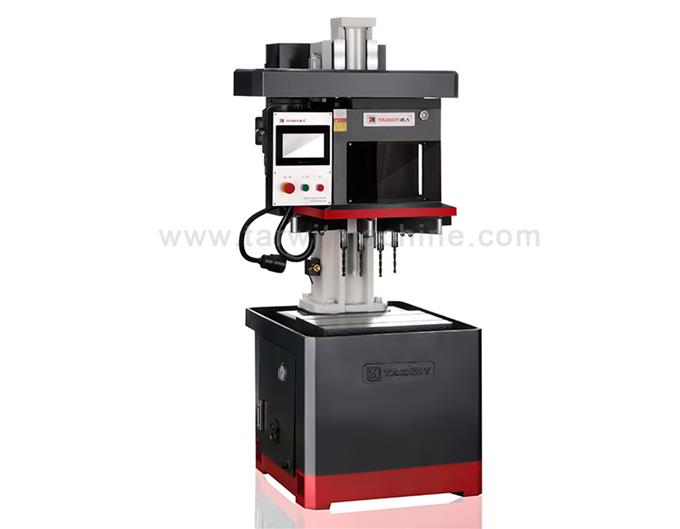

Machine features
ZK5223 series machine increase the touch screen on the basis of ZK5213 series products, adopting the autom atic PLC control system, with the grating ruler precisely controls the feed depth. Deep hole drilling is achieved by multi step feed and multi times chip clearance procedures.Operation interface is user friendly and easy to use.Frequency converter is optional for customers.

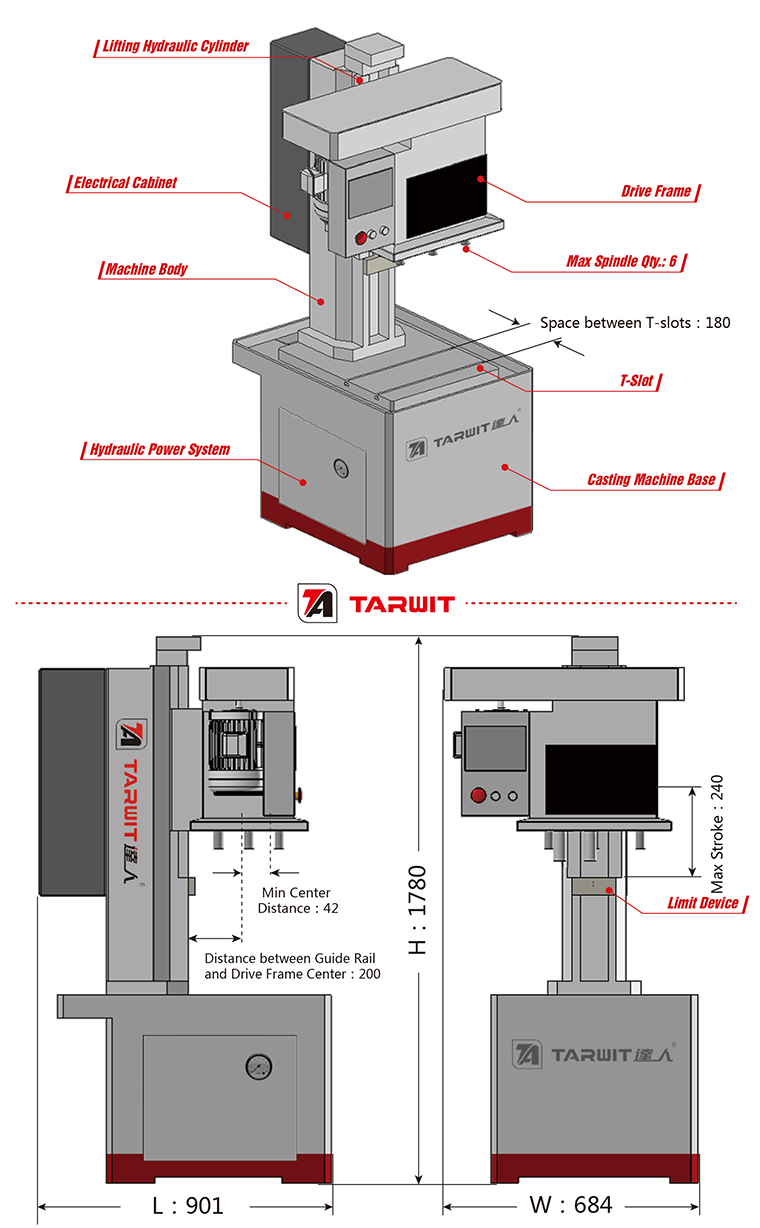

Machine parameters
Technical Parameter Value
Model ZK5223x6
Net weight 980kg
Min center distance 42mm
Max No. Of Spindle 6pcs
Drilling Capacity Ф14-23mm
Drilling Area 170x290(300x300)mm

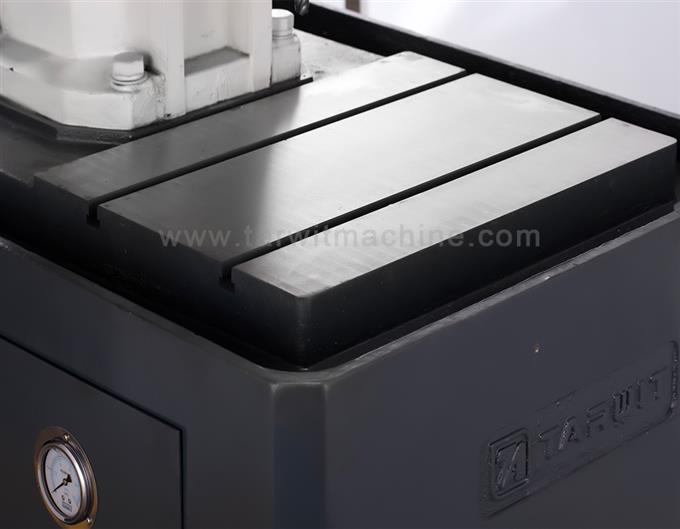

Work table size 350x500mm
Spindle Speed 224/338/549r/min
Main Motor 4kw
Size 684x901x1780mm
Z axis Travel(Stroke) 240mm
Speed Adjust Change V-belt
Cooling water motor 0.09kw
Hydraulic pump motor 0.75kw
Details

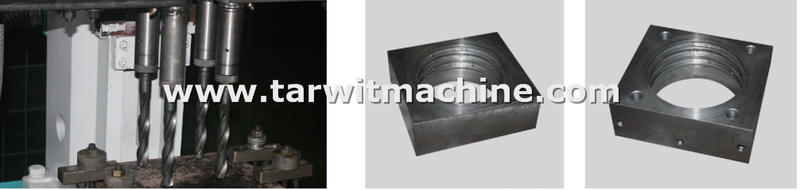

  Processing Example


Machine ModelZK5223*6/4Y           Workpiece NameA3 Steel Part     Depth of Holes:40mm

Diameter of Holes20mm                   Number of Holes4                           Processing Time58s

ZK5223X6 numerical controlled vertical multiple spindle driling machine photo (3).png
