Machine parameters
Technical Parameter Value
Model ZB5223X4
Net weight 980kg
Min center distance 42mm
Max No. Of Spindle 4pcs
Drilling Capacity 14-23mm
Drilling Area 50x500mm
Work table size 350x500mm
Spindle Speed 224/338/549rpm
Main Motor 4kw
Size 684x901x2000mm
Z axis Travel(Stroke) 240mm
Hydraulic pressure 63kg/cm2
Speed Adjust Change V-belt
Cooling water motor 0.09kw
Hydraulic pump motor 0.75kw
Hydraulic tank 37L
Details

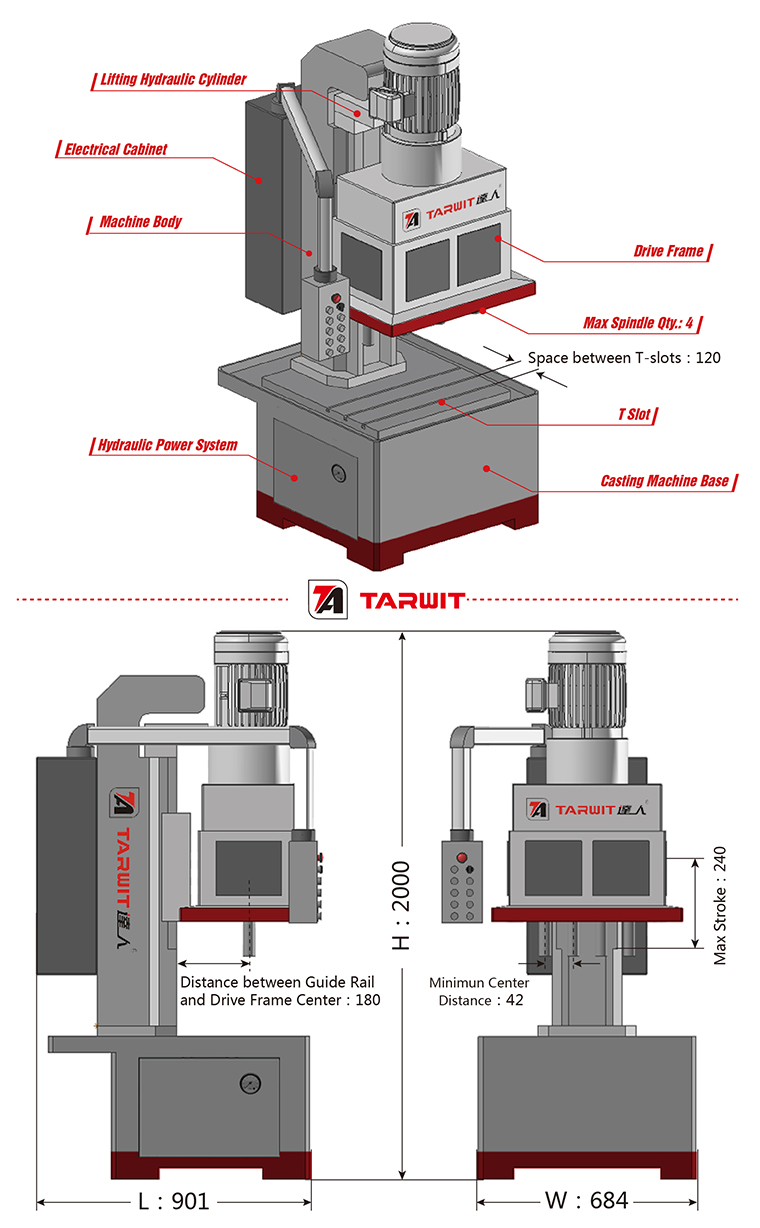

TARWIT brand vertical multiple drilling machine is our second generation vertical machine, fully absorbing the advantages of the multiple drilling machines existed world widely. With adjustable hole distances, it’s suitable for all kinds of work piece, especially good at drilling cast iron, non-ferrous metals and the ferrous metals with the hardness less than HRC35. It will be a great help to you when large quantity batch production is needed.



  Processing Example
