Machine features
SK5213 multiple spindle tapping machine is the latest machine model developed by Handa machinery company, characteristic of wide applications, high processing efficiency and simple operations. It filled the blank market in China. It is able to adjust the distance between the tapping holes flexibly, control the tapping depth precisely. You can set the Screw Pitch freely on the touch screen control panel to meet the requirements of different country's national standard.
Machine parameters
Technical Parameter Value
Weight 980kg
Tapping capacity M3~M12mm
Work table bearing 350x500mm
Min center distance 30mm
Max No. Of Spindle 12pcs
Drilling Area 180x300mm
Main Motor 3.7kw

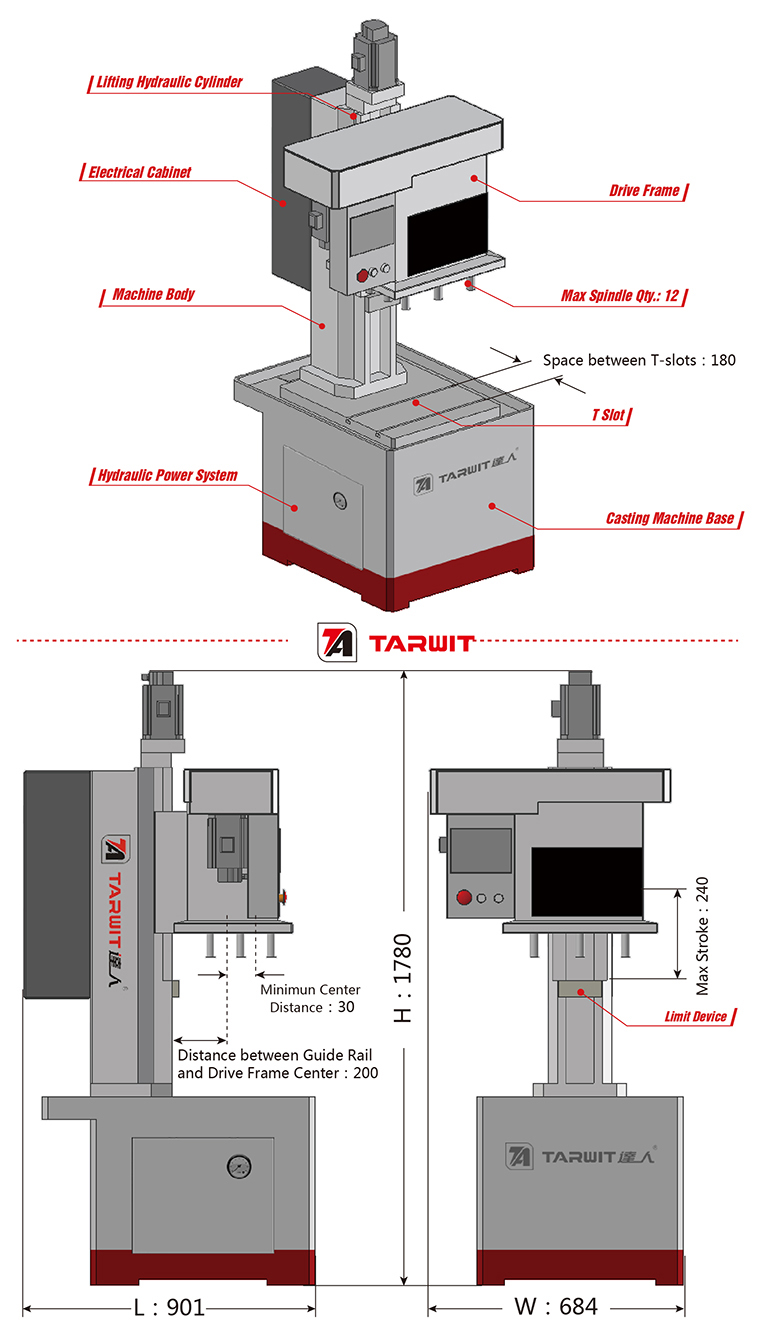

Size 901x684x1780mm
Speed Adjust Servo Motor
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 250mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 0~1300r/min
Lubrication Motor 0.09kw
Details




 Processing Example

Machine ModelSK5213*12/8Y              Workpiece NameFlange

Diameter of Holes6mm                      Number of Holes8                      Processing Time20s

SK5213X12 NC vertical multiple spindle tapping machine photo (4).png
