SK5213X24
SK5213X24
  • SK5213X24
  • SK5213X24
  • SK5213X24

Views:1774Release date:2016-04-08

Previous:SK5223X6Next:SK5223X12

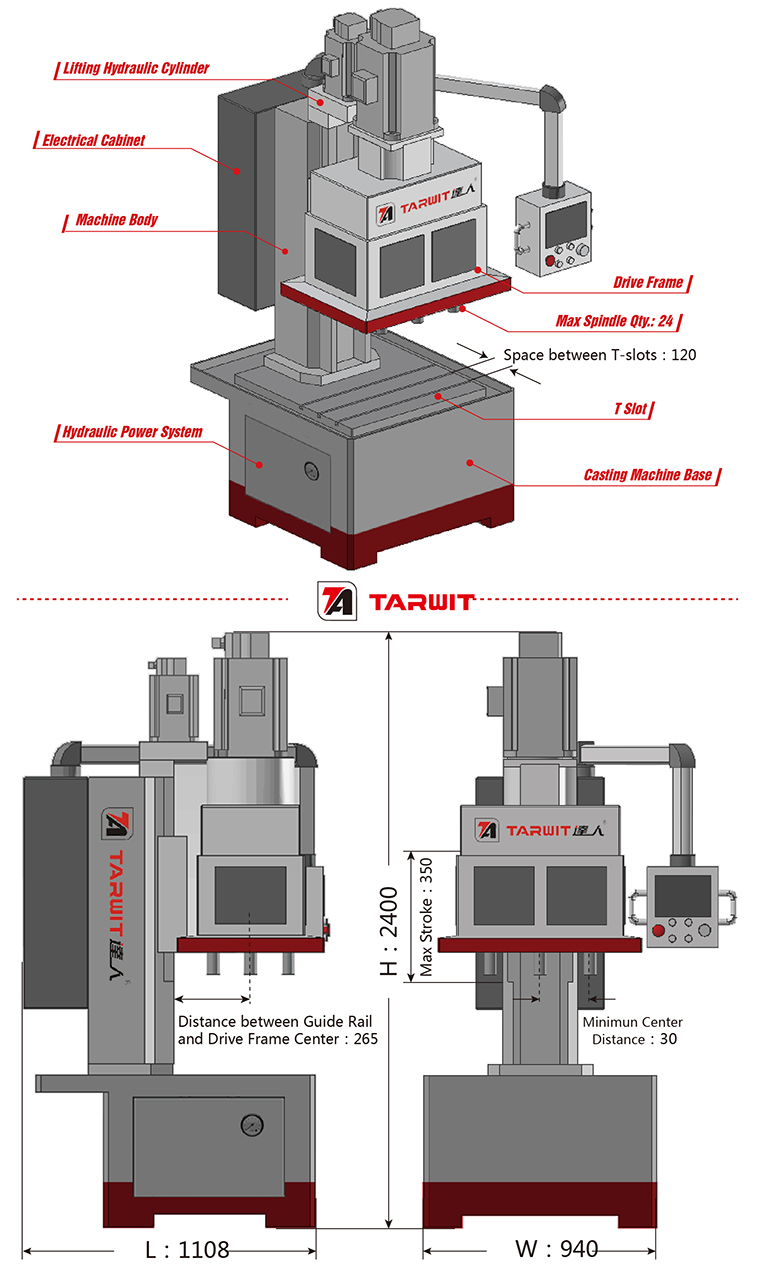

Machine features
SK5213*24 NC multiple spindle tapping machine is capable of tapping 24 holes at most simultaneously, characteristic of wide applications, high processing efficiency and simple operations. It filled the blank market in China. It is able to adjust the distance between the tapping holes flexibly, control the tapping depth precisely. You can set the Screw Pitch freely on the touch screen control panel to meet the requirements of different country 's national standard.
Machine parameters
Technical Parameter Value
Tapping capacity M3~M12
Model SK5213X24
Net weight 2950kg
Min center distance 30mm
Max No. Of Spindle 24pcs
Drilling Area 300X520mm
Stroke 350
Work table size 450X750mm
Spindle Speed 50-500
Main Motor 5.5kw
Size 940X1108X2400mm
Speed Adjust Servo Motor
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 0~1300r/min
Lubrication Motor 0.09kw
Details

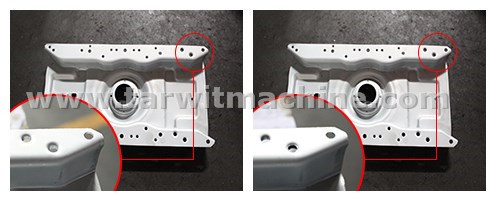

 ◆ Processing Example

Machine Model:SK5213*24/11Y           Workpiece Name:Sheet Metal                        Depth of Holes:0.5mm

Diameter of Holes:M5/M6/M8                 Number of Holes:11                                      Processing Time:3s

SK5213x24 NC Multi Spindle Tapping Machine photo.jpg
